Nodus Factory LR5 Soft Fairlead Shop Now
Home / Marine-Boat Parts / Nodus Factory LR5 Soft Fairlead Shop Now

Nodus Factory LR5 Soft Fairlead Shop Now

Original price was: $64.95.Current price is: $32.48.

For orders under $49.00, a shipping fee of $7.99 applies.

SKU: SK0186977-US20251222-083103 Category: Tag:
Share

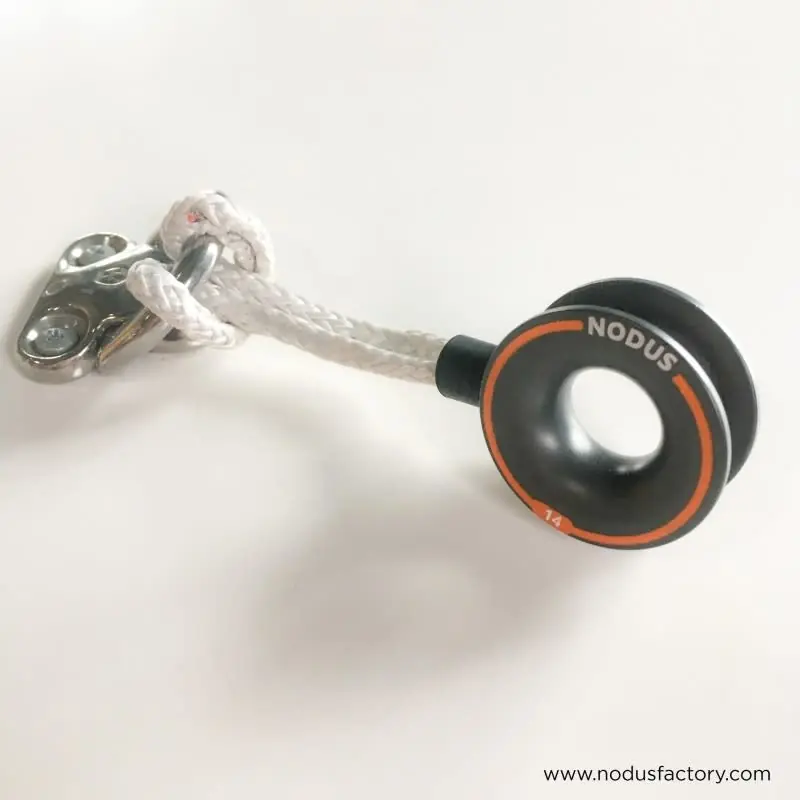

LR® is a loop made of Nodex® R2 and is available in 2 models, either with a low friction ring with a wide opening, or with a duralumin ring FrD

This textile loop is easily fixed on the deck plates and toe rail and, using the Nodus friction ring can haul all adjusting ropes. You can easily create halyard and sheet haulers.

Use
  • Equipment which easily replaces a pulley and can handle heavy static loads (opening ring) or dynamic loads (duralumin ring).
  • For Dyneema® or non-abrasive ropes (opening ring) / all types of ropes (duralumin ring)
  • For quick and easy fastening between two elements: mainsail foot, mast foot haulers, barber-hauler, in-hauler, lazy-jack, lazy-bag, hoist 2/1, etc.



Product Details

  • Duralumin friction ring
PRODUCT NAME BREAKING LOAD Ø LINE  LENGTH Ø INTERN Ø ROPE RECOMMENDED
  CMU R2 Straight Ring Halyard /Sheet
  Kg mm cm mm mm
LR 4 1800 4 11 14 8/12
LR 5 5000 6 14 20/25 12/20
  • Open friction ring
PRODUCT NAME BREAKING LOAD Ø LINE  LENGTH Ø INTERN Ø ROPE RECOMMENDED
  TH Ring R2 Straight Ring Halyard/Sheet
  Kg mm cm mm mm
Angle 0° – 90° – 180°     TH
LR 4 1800 – 1250 – 900 4 11 14 6/8
LR 5 3000 – 2150 – 1500 5 14 20 8/10
