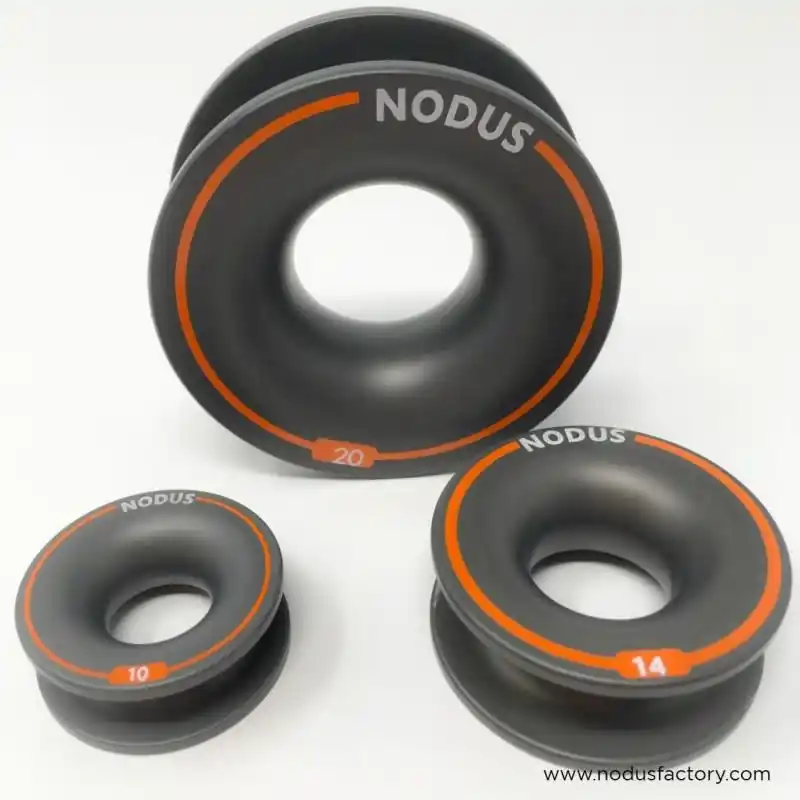

Crafted Nodus Factory FRD 10 Low Friction Ring Duraluminum
Home / Marine-Boat Parts / Crafted Nodus Factory FRD 10 Low Friction Ring Duraluminum

Crafted Nodus Factory FRD 10 Low Friction Ring Duraluminum

Original price was: $31.95.Current price is: $15.97.

For orders under $49.00, a shipping fee of $7.99 applies.

SKU: SK0186990-US20251222-083103 Category: Tag:
Share

FrD® the Nodus Factory® friction ring has a super slippery Teflon coated surface. It is also very light, reliable and resistant. The Nodus friction ring is used in numerous applications and for all types of rope.

This product allows an infinite number of combinations, especially where peak loads are the rule, such as backstays, cascade dumbbells, barbers and many others.

+ USES
  • Mast foot, in-hauler
  • Barber, in-haulers or as spare pulley
  • Tackle (Mainsail, vang, running backstay, etc.)
  • Hoists (mainsail, vang, running backstay,…etc)

Product

Name

Breaking Load

 Ø A Ø B Ø C Ø D

Ø Rope

Recommended

 Weight
Angle  0°         Halyard and sheet
Duralumin KG mm mm mm mm mm gr
FrD 10 1500 7 12 12 30 8 max. 8
FrD 14 1800 11 16 16 40 10 max. 16
FrD 20 5000 17 24 24 60 16 max. 80
