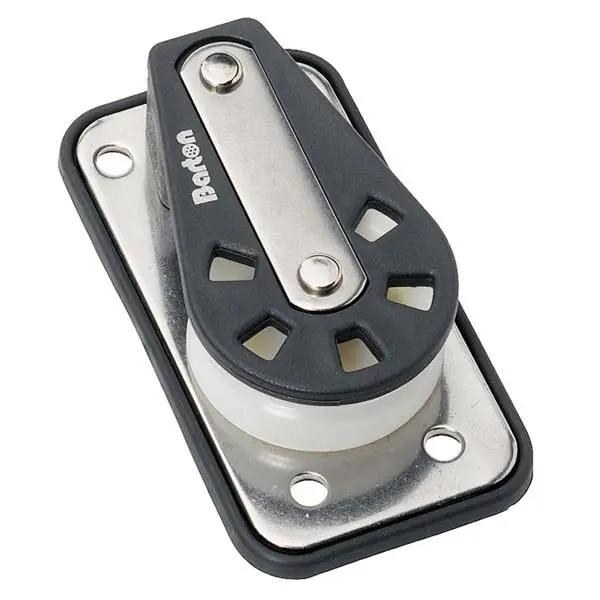

Cheek Block Size 2

Series 2 35mm Blocks – Cheek Block

With a plastic backing plate standard to allow snug attachment to spars etc

• Base size 79mm x 43mm.
• Fastenings 5mm.

Barton plain bearing blocks have a precision moulded Acetal sheave running on a large diameter brass bearing, ensuring free running under the highest of loads.

• Length:80mm(3.14″)
• Sheave Size:
• Single: 35mm x 12mm (1-3/8″ x 15/32″)
• Fiddle: 30/45mm x 12mm (1-3/16″ /1-3/4″ x 15/32″)
• SWL: 370kg (815lbs)
• Max Rope Diameter: 8mm (5/16″)
• Break Load:740kg (1,630lbs)
